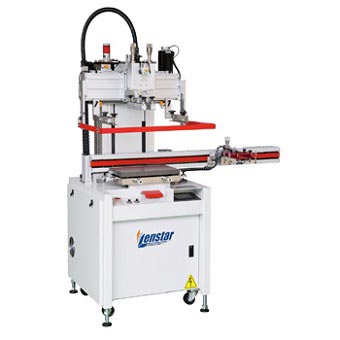

INQUIRYProduct Feature
- Top line cylinder for printing and with the special design for precision move and adjusting mechanish to make the move quite and smothly.
- With the DC motor for printing, the timing belt, line cylinder make it stable. You can set up the squeeze depth, rotation anagle, slope angle, and with the construct pressure device to show the best of printing.
- Up/down for fraue: we use the integrated frame, up/down of printing fame and with the all kinds of thickness of boards to make it easy to adjustable and fast.
- Clamp locking, easy and fast for loading, unloading, and still locking for abnormal stop air or electronic.
- The Phc and touch Panel for easy to operation and many kind of parametal setting, and show it.
- Provide the safety device, safety return to origin, auto detect error system, safety optical grating, emergency stop switch.
Product Specification
| Item | Specification |
|---|---|
| Table dimensions | 400x250mm |
| Printing Area | 250x150mm |
| Frame Thickness | 20-30mm |
| Main power | AC220V,380V,3PH,2.6kw power consumption |
| Air pressure | 6-8kg/cm2 |
| Dimension | W760xL1570xH1570 mm |
| Color | Ivory white |
